1. 1.1" sensor support, Compatible with IMX253,IMX226, IMX250 2. Range covers 16mm/25mm/35mm/50mm/75mm 3. Optimized for Macro Applications( short working distance) 4. Applications for factory automation and image processing areas.
MC11C12M Series Macro lenses is specially designed for short working distance(around WD 100mm). The 1.1" 12MP lens is designed for multiple focal lengths to assure the right working distance can be met for variour industrial applications such as electronics, semiconductors, precision machinery and other fields.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | Magnification | O/I Conjugate Distance | WD(mm) | Mount | Filter Size |

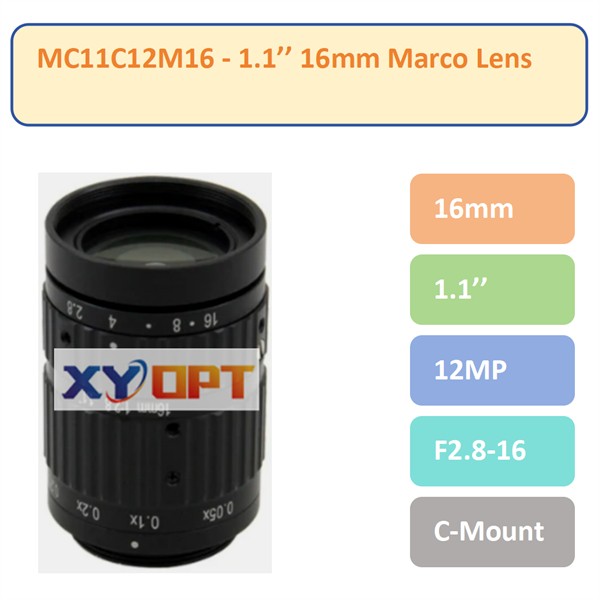

| MC11C12M16 | 16mm | 1.1" | 2.8-16 | ﹤0.33% | -0.25x～-0.03x | 115.5-606.9 | 52-546 | C-Mount | M28.5×P0.5 |
Screw mount (S-Mount) lenses in M12, M10 thread
