• 1.1" 12MP, 2.74µm pixel, compatible with IMX267/IMX304/IMX565/IMX902 • IR-corrected, minimal focus shift from visible to 850nm NIR • P-Iris with stepper motor focus, remote controllable • For ANPR/ALPR, speed & traffic enforcement applications

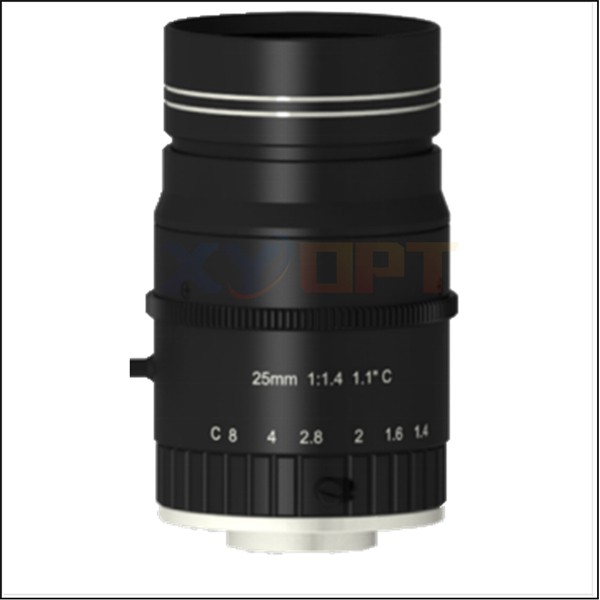

The LP11CEIR25 is a 1.1-inch, 12MP, F1.4 IR-corrected C-mount lens engineered for large-format sensors including Sony IMX267, IMX304, IMX565
and IMX902. Its IR-corrected optical design maintains minimal focus shift from visible through 850nm NIR, delivering sharp day-night imaging for 24/7 traffic applications.
Integrated P-Iris and stepper motor focus allow remote adjustment of aperture and focus from the control room, eliminating on-site recalibration after installation.
This makes the lens ideal for mid-range ANPR, medium-distance toll enforcement and urban traffic systems mounted on gantries or poles where physical access
is limited. A full lineup from 12mm to 70mm is available. Datasheets, MTF reports and evaluation samples are provided on request.
Technical Specifications:
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Focus | Iris |
| LP11CEIR25 | 25mm | 1.1'' | 12MP | F1.4 | C-Mount | Motorized | P-Iris |
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Focus | Iris |
| LP11CEIR25 | 25mm | 1.1'' | 12MP | F1.4 | C-Mount | Motorized | P-Iris |
| LP11CEIR35 | 35mm | 1.1'' | 12MP | F1.4 | C-Mount | Motorized | P-Iris |
| LP11CEIR50 | 50mm | 1.1'' | 12MP | F1.4 | C-Mount | Motorized | P-Iris |
Full technical datasheets, MTF test reports, and evaluation samples are available upon request. We also support custom optical specifications tailored
to your specific project requirements. Contact our technical sales team for detailed pricing and lead time information.
Screw mount (S-Mount) lenses in M12, M10 thread
