1. Suitable for 1.1" 12MP sensors, 2.74μm compatible 2. Usable lineup for ANPR, 12mm/16mm/25mm/35mm/50mm/70mm 3. Manual iris and P-iris available 4. Minimizing focus shift from visible light to NIR 5. High spectral transmittance between visible light to NIR

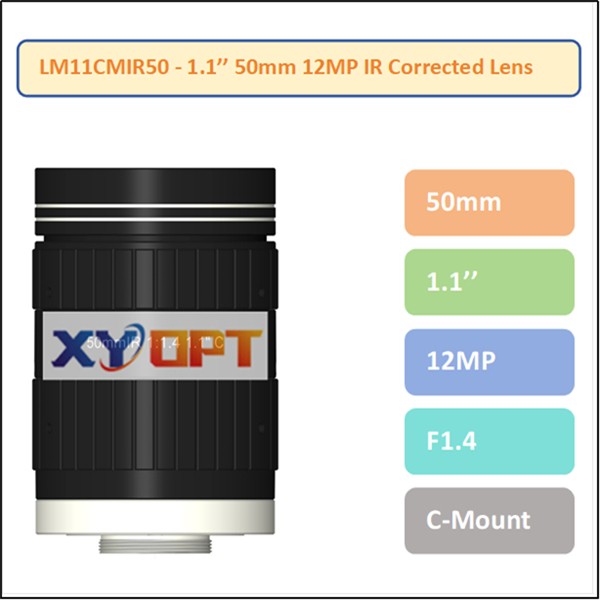

The 1.1-inch format 12MP 50mm IR-corrected C-mount lens is a high-resolution industrial optical solution for large-format image sensors, fully compatible with Sony IMX267, IMX304, IMX565 and IMX542 image sensors. With its full day-night IR-corrected optical design, it delivers consistently sharp imaging and minimum focus shift across both visible daylight and near-infrared (NIR) night illumination, making it an ideal choice for intelligent traffic systems (ITS), ANPR/ALPR, machine vision inspection, and high-end outdoor surveillance applications.
Sony IMX267
Sony IMX304
Sony IMX565
Sony IMX542
Technical Specifications:
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Dimension |
| LM11CMIR50 | 50mm | 1.1'' | 12MP | F1.4 | C-Mount | Ф56×80.2mm |
Intelligent Traffic Systems (ITS):Speed enforcement, red-light violation detection, traffic flow monitoring, and electronic toll collection systems.
Automatic Number Plate Recognition (ANPR/ALPR): Highway toll gates, parking access control, checkpoint vehicle identification, and urban traffic management
Machine Vision Inspection: High-precision industrial quality control, product defect detection, and automated manufacturing imaging
High-End Outdoor Surveillance: Long-range perimeter monitoring, airport/port security, and critical infrastructure protection
Full technical datasheets, MTF test reports, and evaluation samples are available upon request. We also support custom optical specifications tailored to your specific project requirements. Contact our technical sales team for detailed pricing and lead time information.
